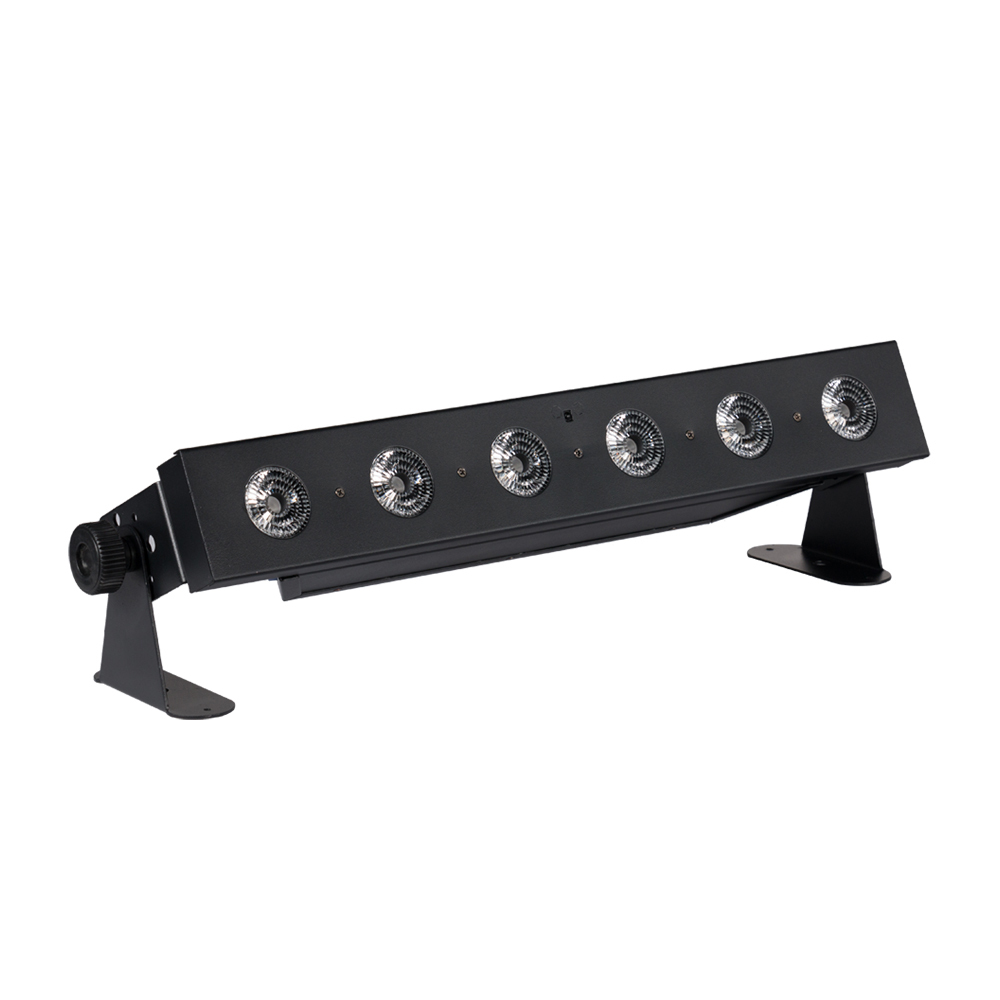

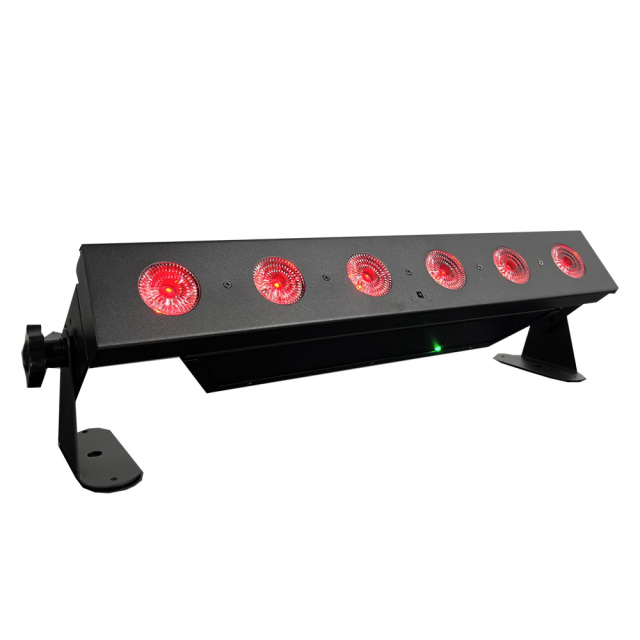

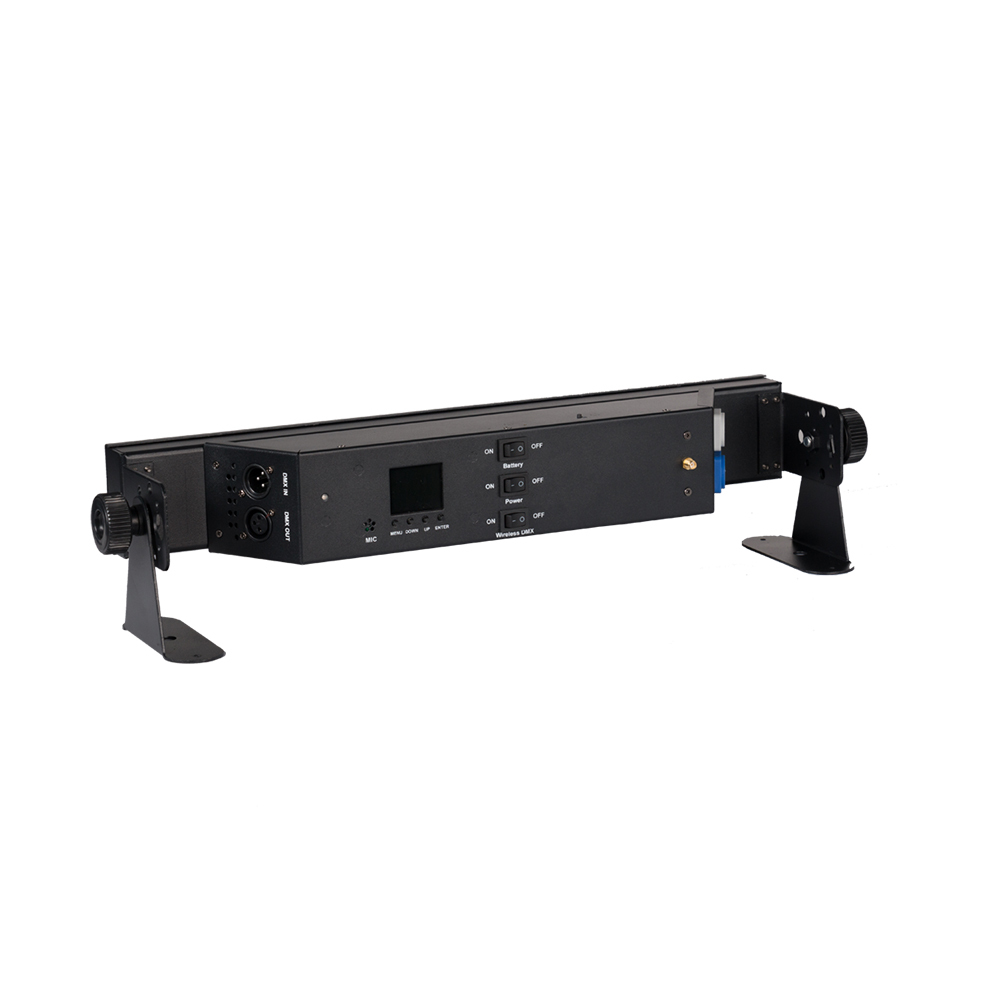

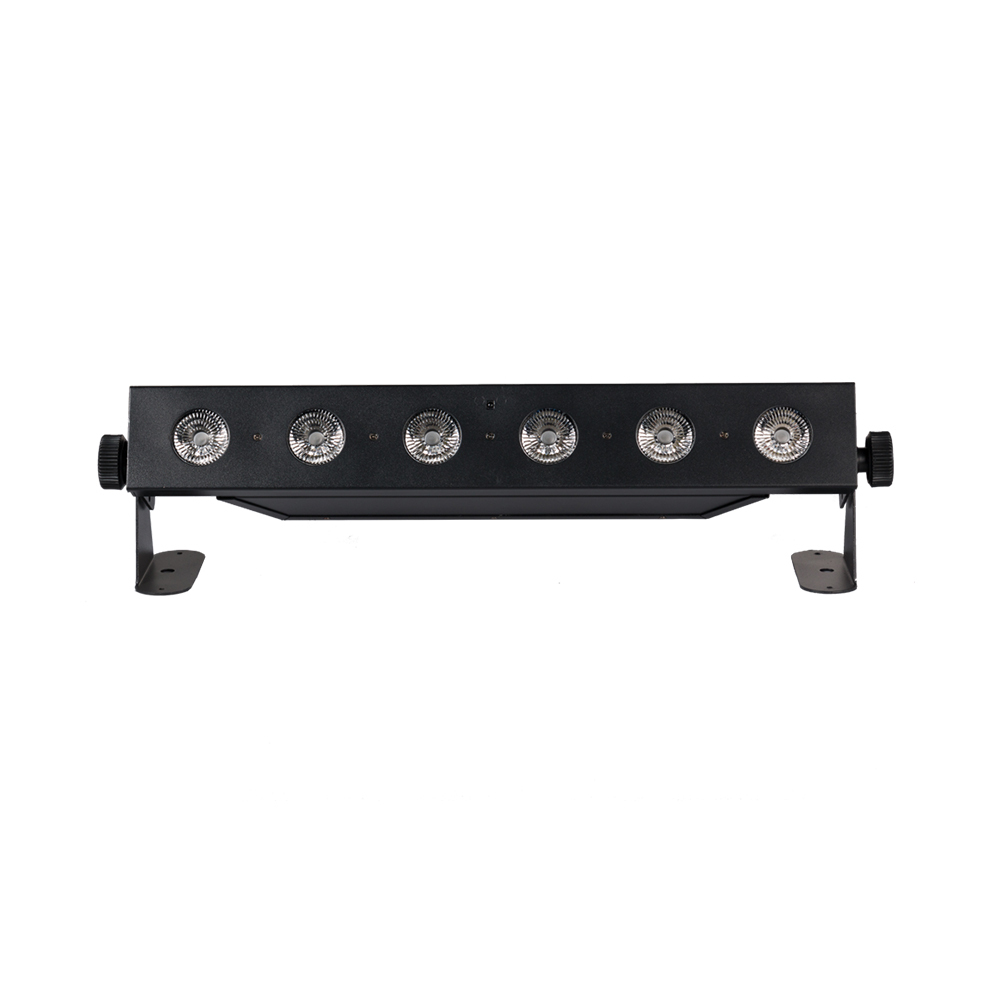

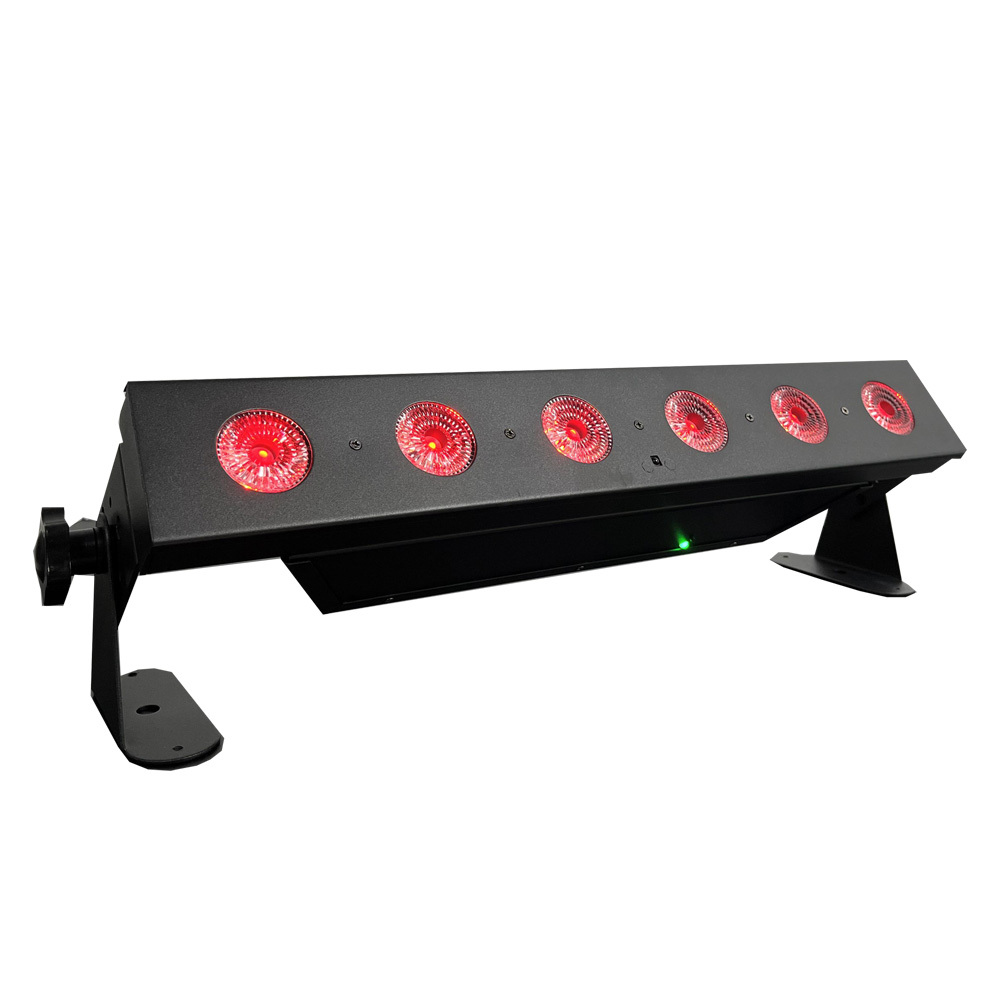

battery uplighting 6x18w RGBWA UV 6in1 wireless dmx LED wall washer

Item No.: BO-S602
Light source: 6pcs 18W RGBWAUV 6in1 leds
Voltage: AC100-240V  50/60Hz
Service: OEM,ODM
Payment: TT/ Paypal/ Western Union
Housing:  White/Black
Description DMX CHANNEL



BO-S602
battery uplighting 6x18w RGBWA UV 6in1 wireless dmx LED wall washer

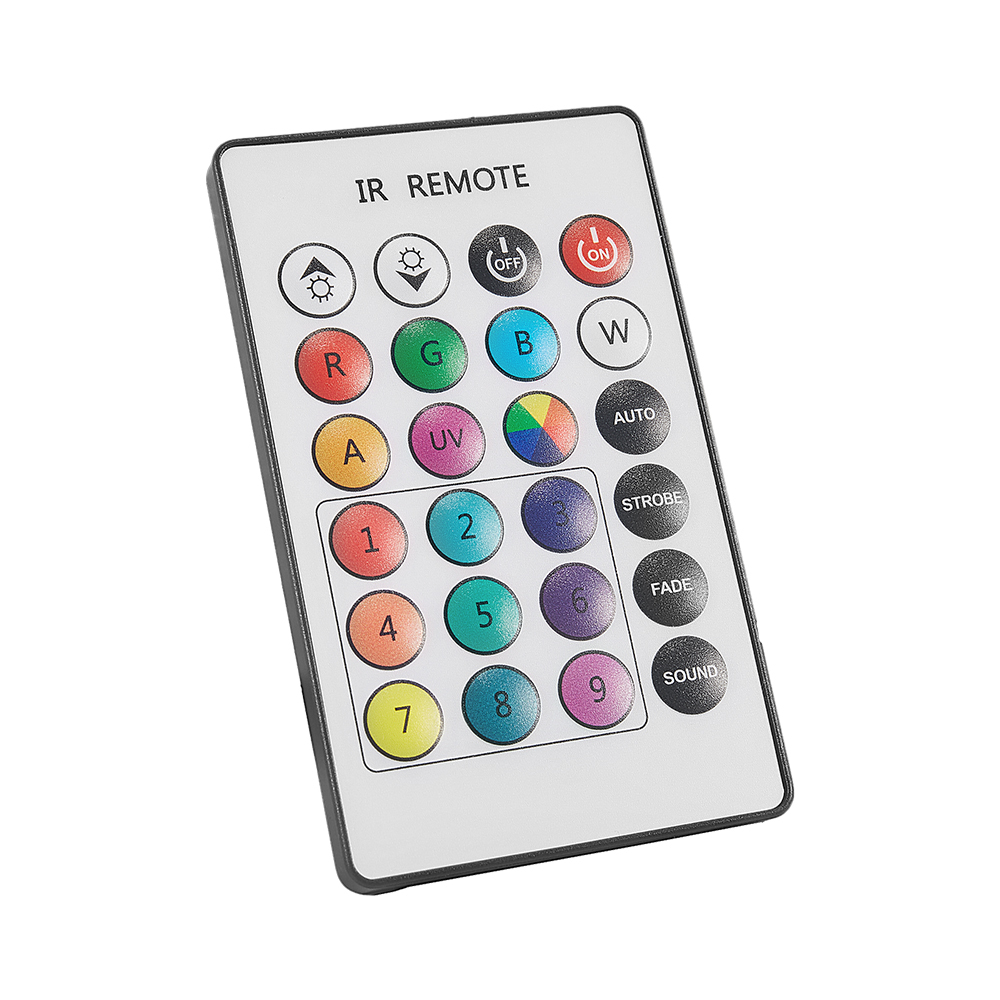

√ With Built-in 2.4G Wireless DMX + WIFI App Control + IRC Remote Control
√ Rechargeable Battery Powered:(8800MHA)
√ Suitable for discotheques, clubs, bars, parties, mobile DJs, concerts and so on.








Battery lasting time
Auto running mode 6-7 Hours
one colors 25 Hours
Specifications
Power supply AC100V-250V 50/60Hz
Lithium Battery 8800MHA
SmartPhone App Control iOS/Android Mobilephone App Control
Frequency 50-60Hz
Power consumption 110W
Light source 6cs 18W high brightness 6 in 1 leds
Lamp life 6-10 ten thousand hrs
LED angle 40degree
Color 16.7 million kinds of color change
Control channels 6/10 chs
Automatic model color change,strobe,dimmer,gradua change/jump change
Operation menu 4 digit digital LED display
Packing size 500*160*100mm
Function
Perfect Match up with 2.4 Wireless DMX 512 Transmitter (DA-WDMX-LCD )
Battery power & wireless DMX&IR control
Wireless DMX-512 protocol
Built in 2.4G receiver/ transmitter for wireless DMX operations
Control mode: DMX512, master/slave, auto, sound active

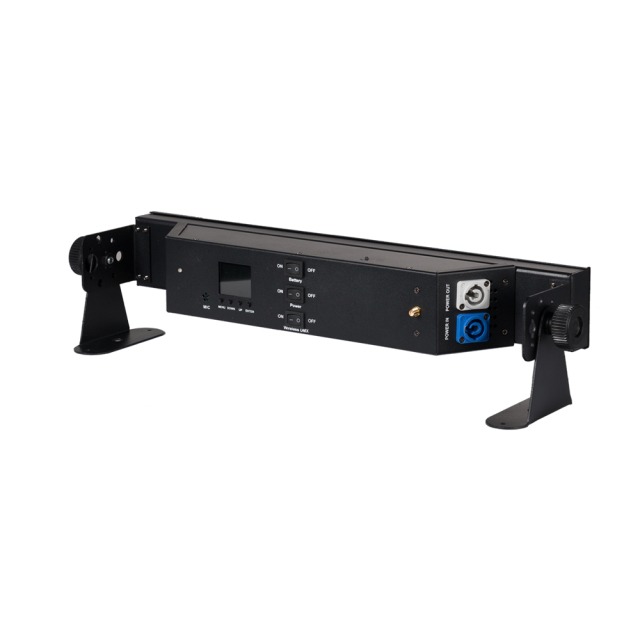

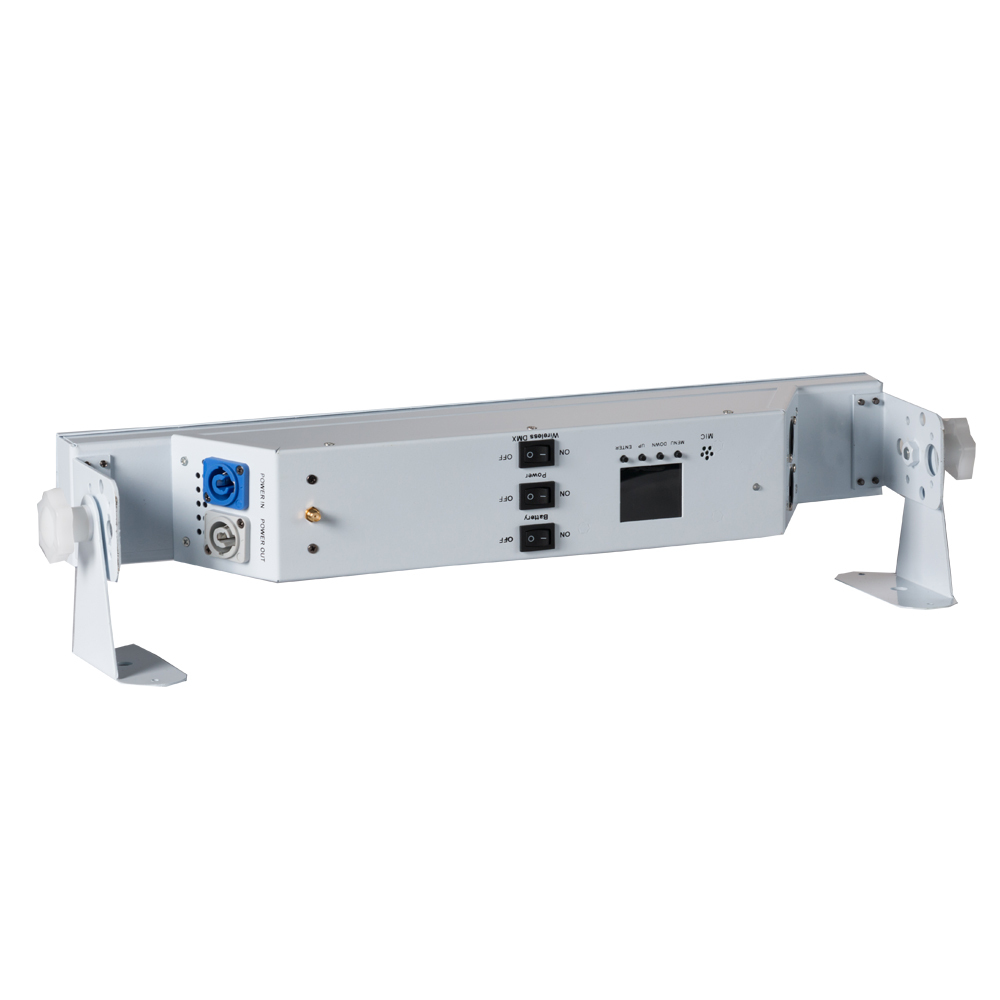

Daisy Chain Power in and Power out

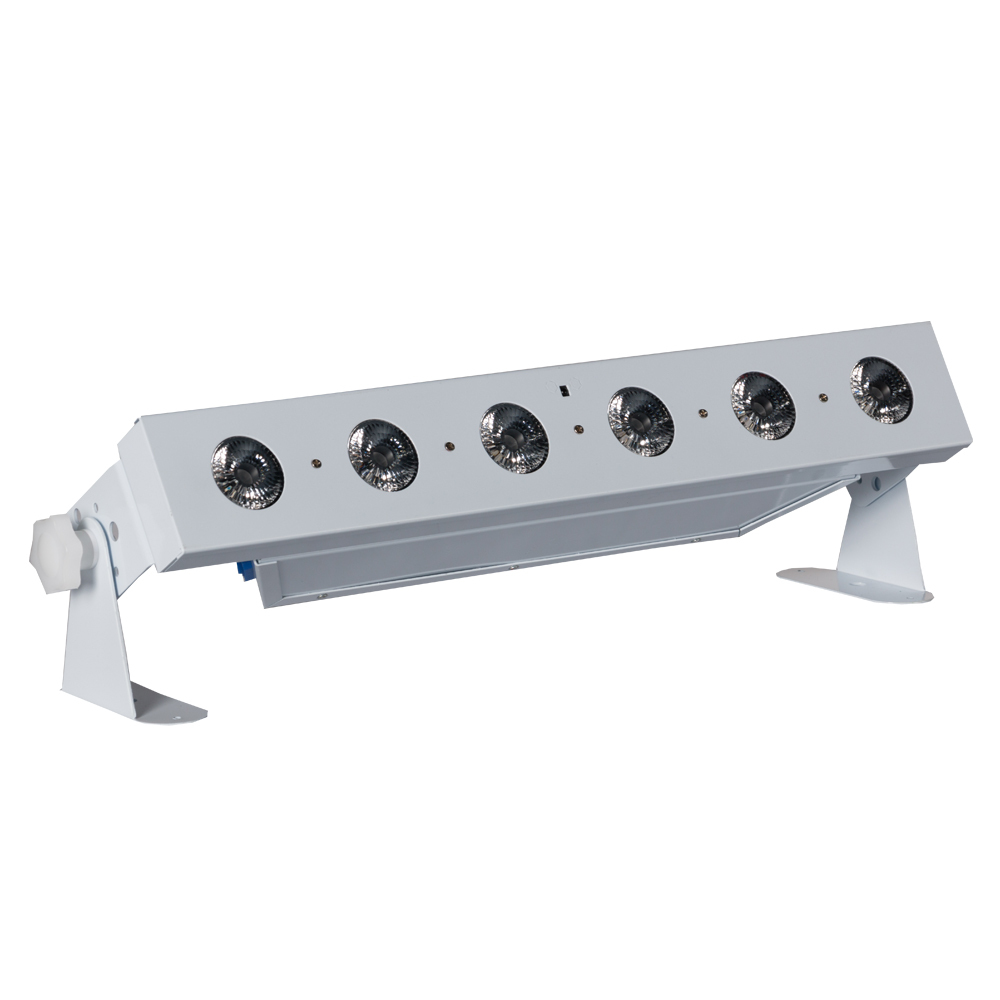

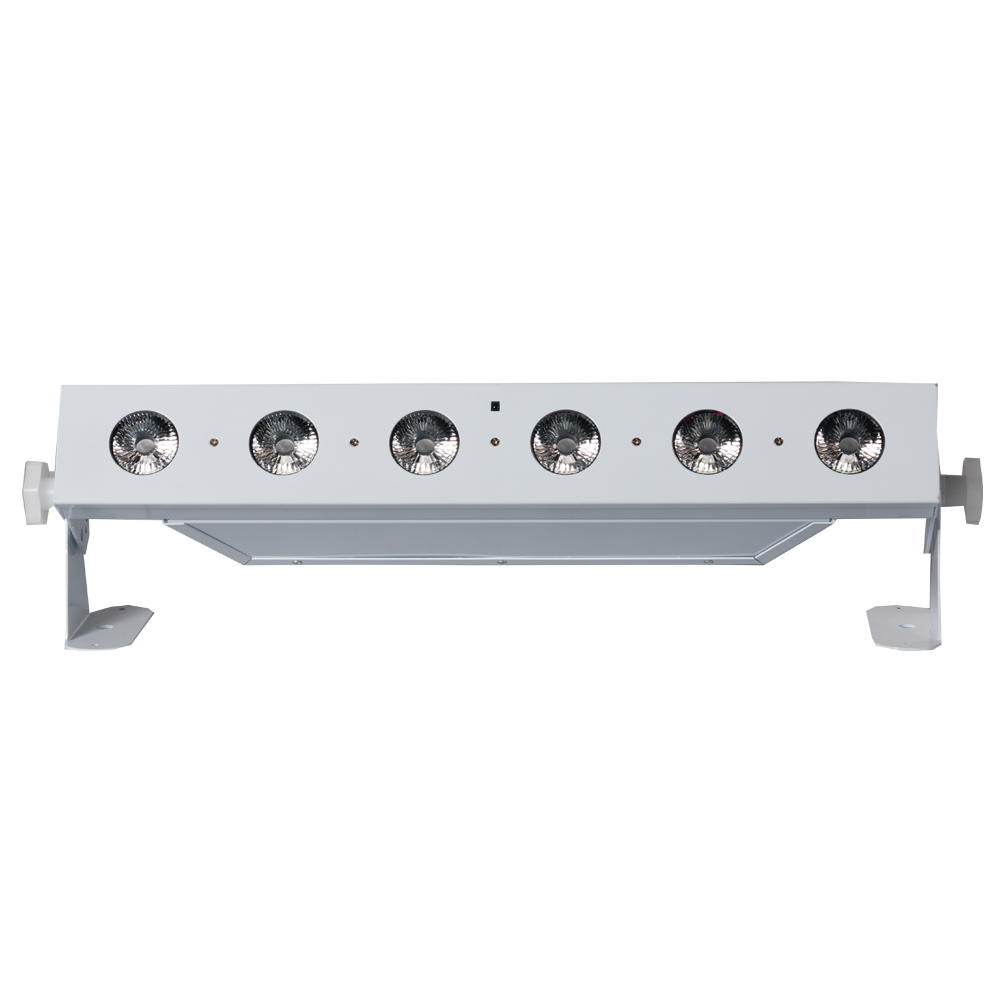

Body Color:Black or White Selectable





















1. Provide professional person to communicate with you before the order.
2. Provide strict quality check for each part, each process before export.
3. Provide optimum system solution based on each client’s specific requirement.
4. Provide complete post-sale service, including installation, technical guide and training.







DMX 512 Channel List

Channel 6 channel 10 channel
CH1 0-255 red dimming 0-255 dimming
CH2 0-255 green dimming 0-255 red dimming
CH3 0-255 blue dimming 0-255 green dimming
CH4 0-255 white dimming 0-255 blue dimming
CH5 0-255 amber dimming 0-255 white dimming
CH6 0-255 purple dimming 0-255 amber dimming
CH7   0-255 purple dimming
CH8   0-255 strobe
CH9   0-8 Close
9-50 Color selection mode
51-100  Auto Color mode
101-150  Auto Sudden mode
151-200 Auto Fade mode
201-220 Sound Mode1
221-240 Sound Mode2
241-255 Sound Mode3
CH10   0-255 Color and speed
