Battery Par Light

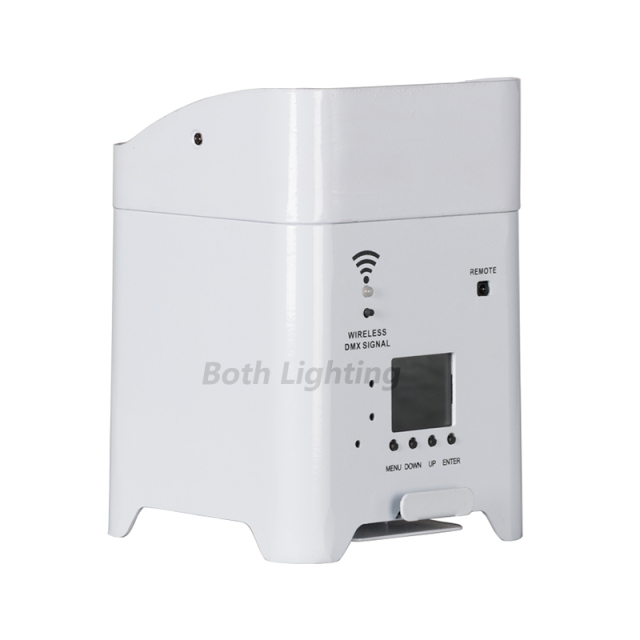

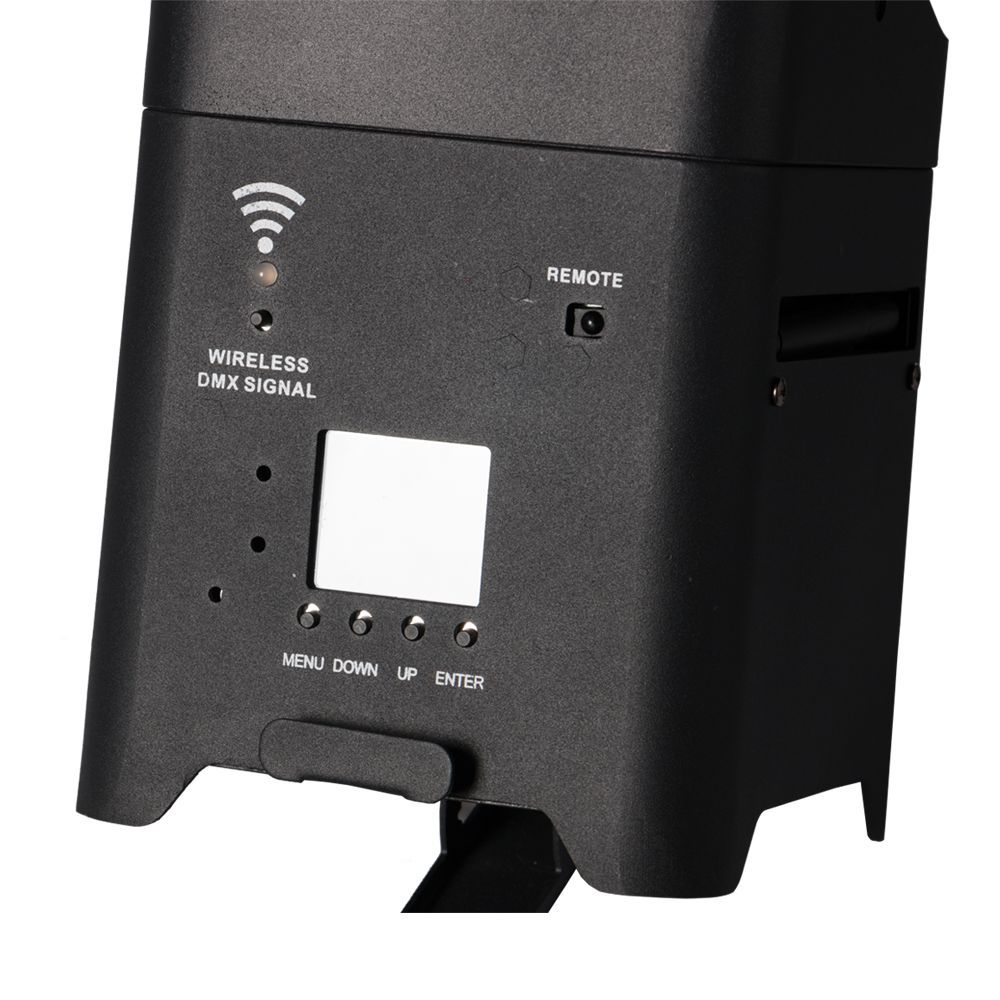

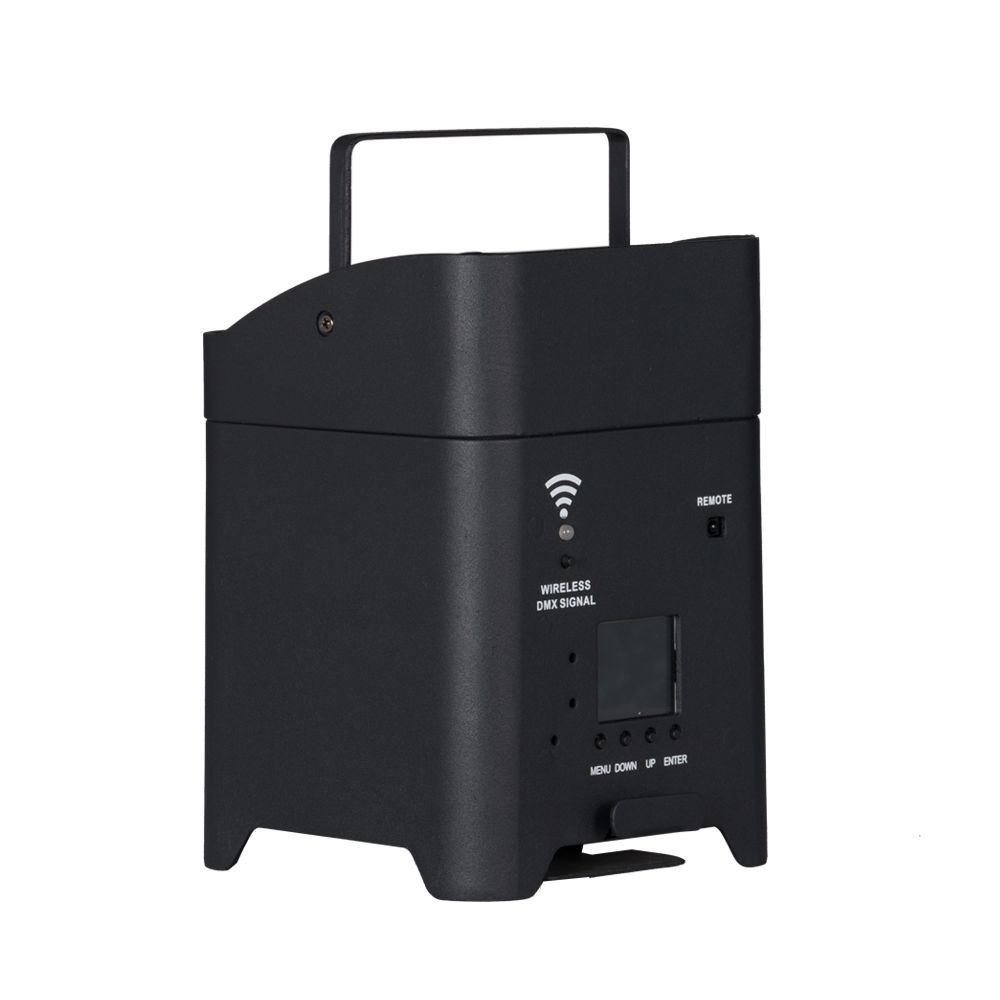

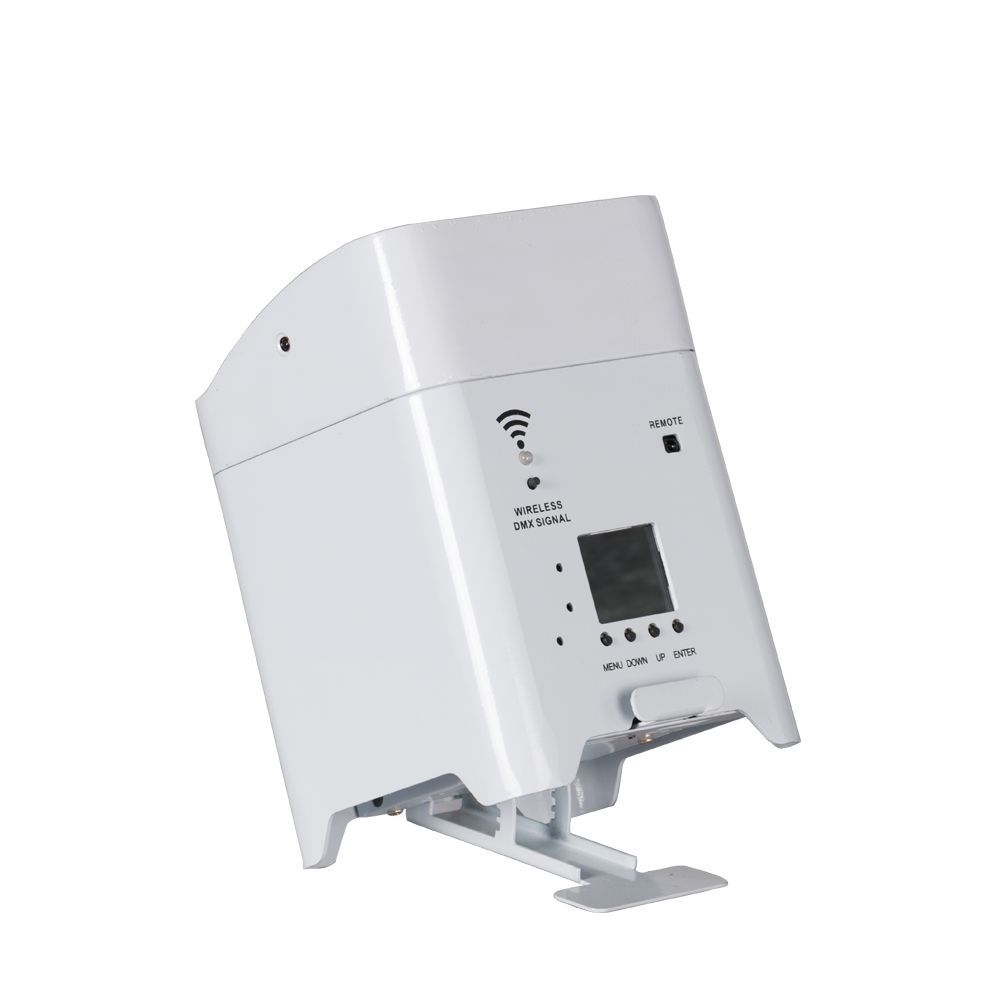

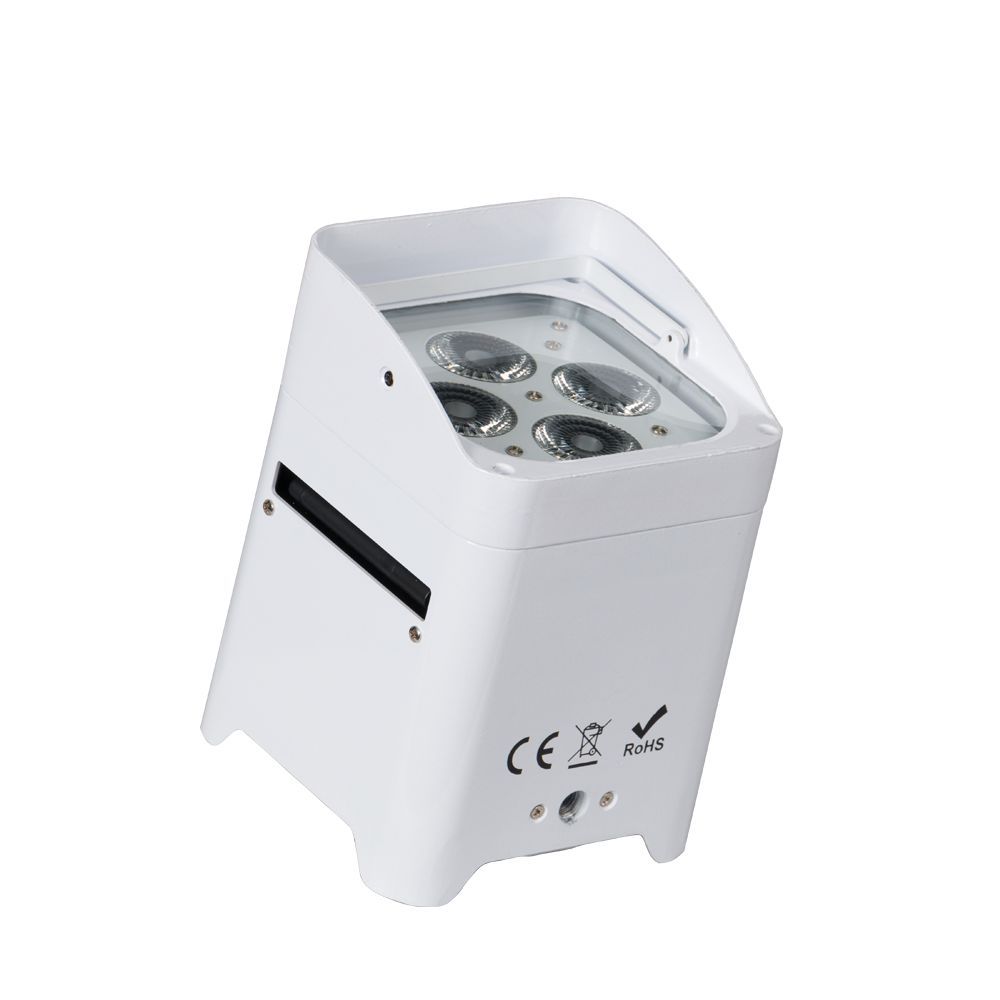

SMART DJ S4 4x18w RGBWA UV 6in1 wireless dmx LED battery uplighting
Item No.: BO-S603

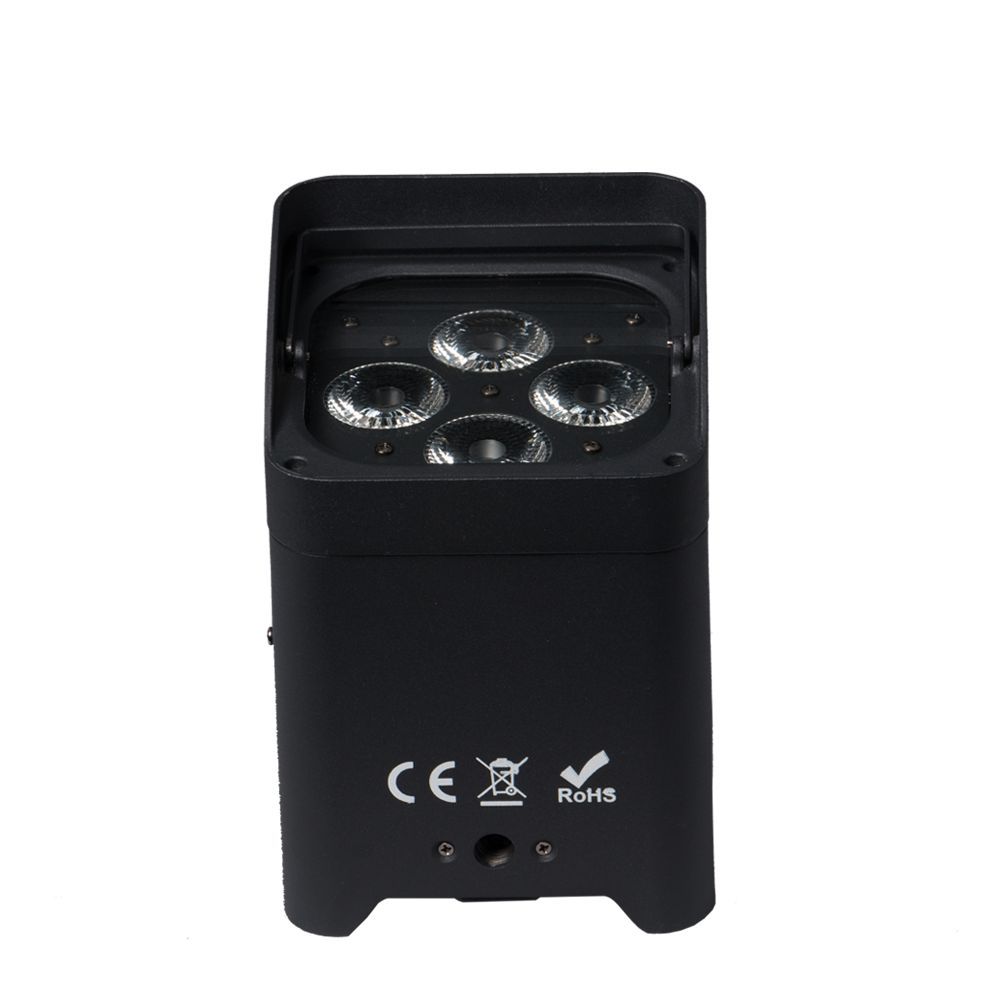

Light source: 4pcs 18W RGBWA UV 6in1 leds
Voltage: AC100-250V 50/60Hz
Service: OEM,ODM
Payment: TT/ Paypal/ Western Union
Housing: White/Black
Voltage: AC100-250V 50/60Hz
Service: OEM,ODM
Payment: TT/ Paypal/ Western Union
Housing: White/Black
Description
DMX CHANNEL
BO-S603

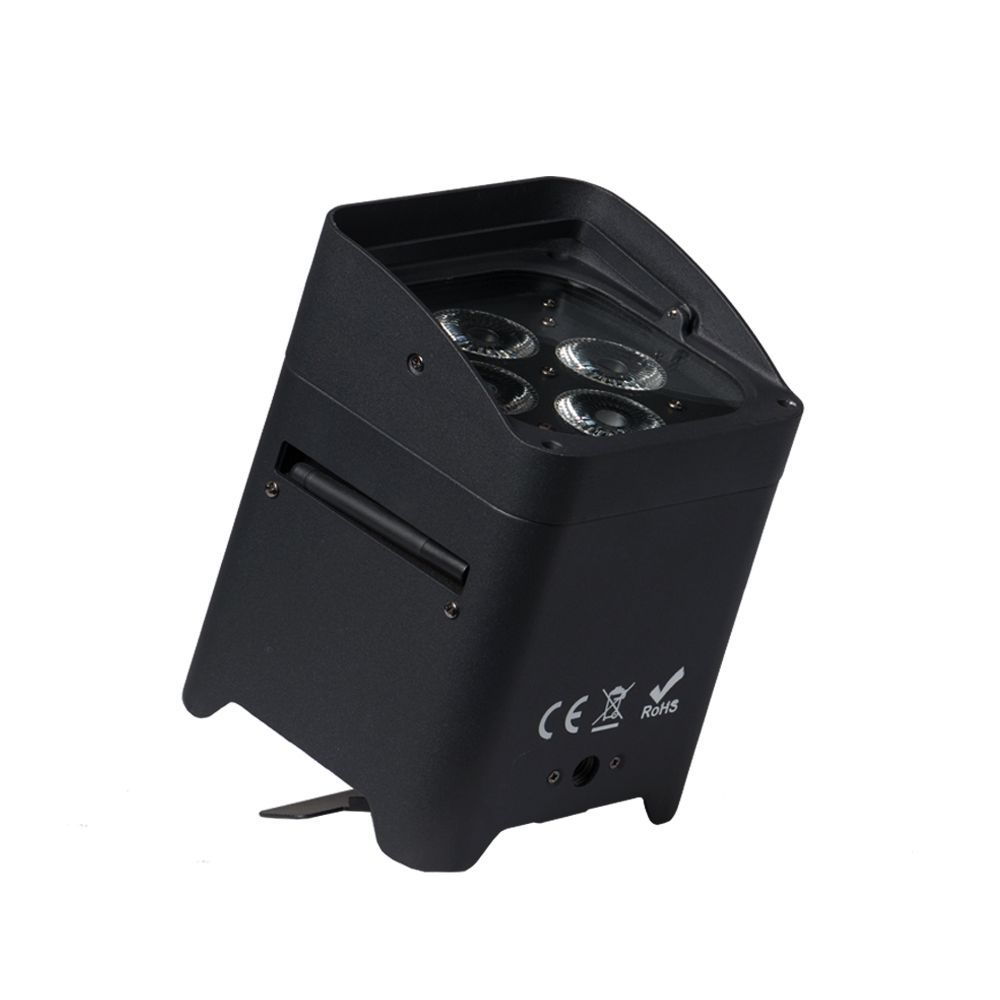

SMART DJ S4 4x18w RGBWA UV 6in1 wireless dmx LED battery uplighting

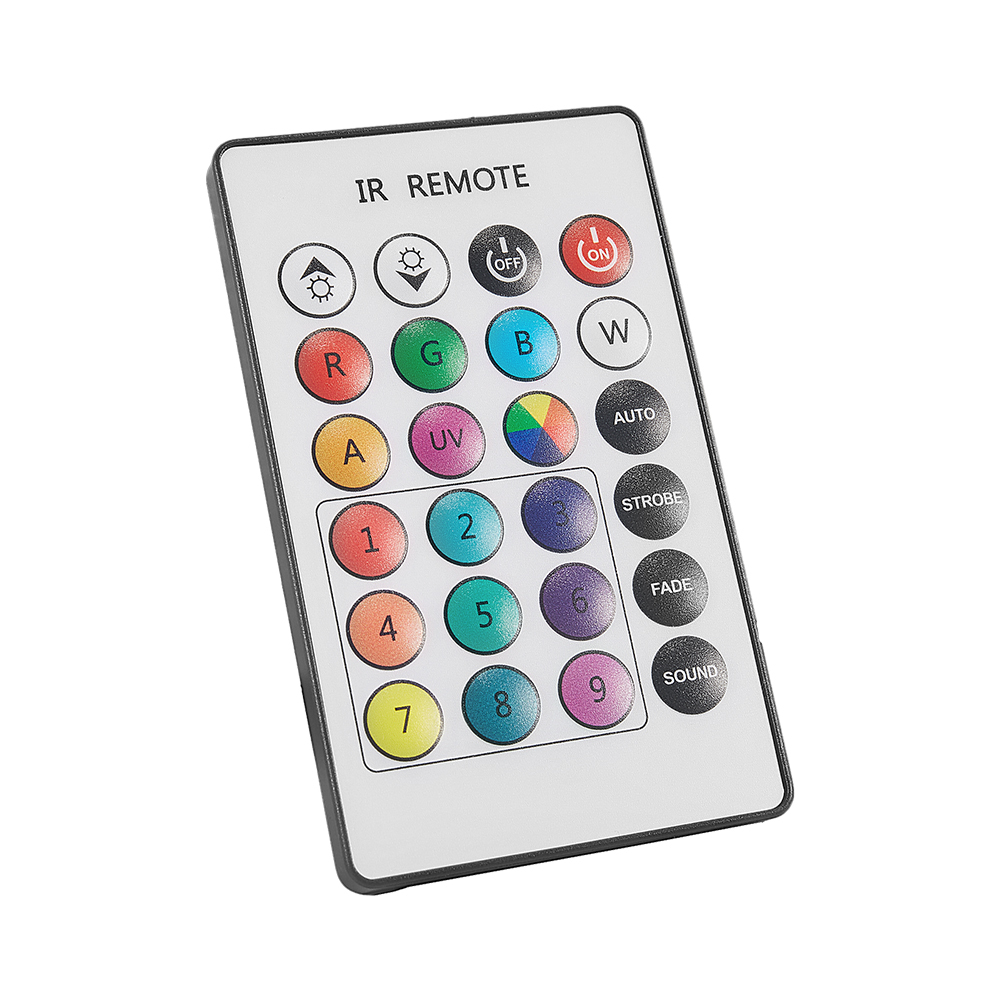

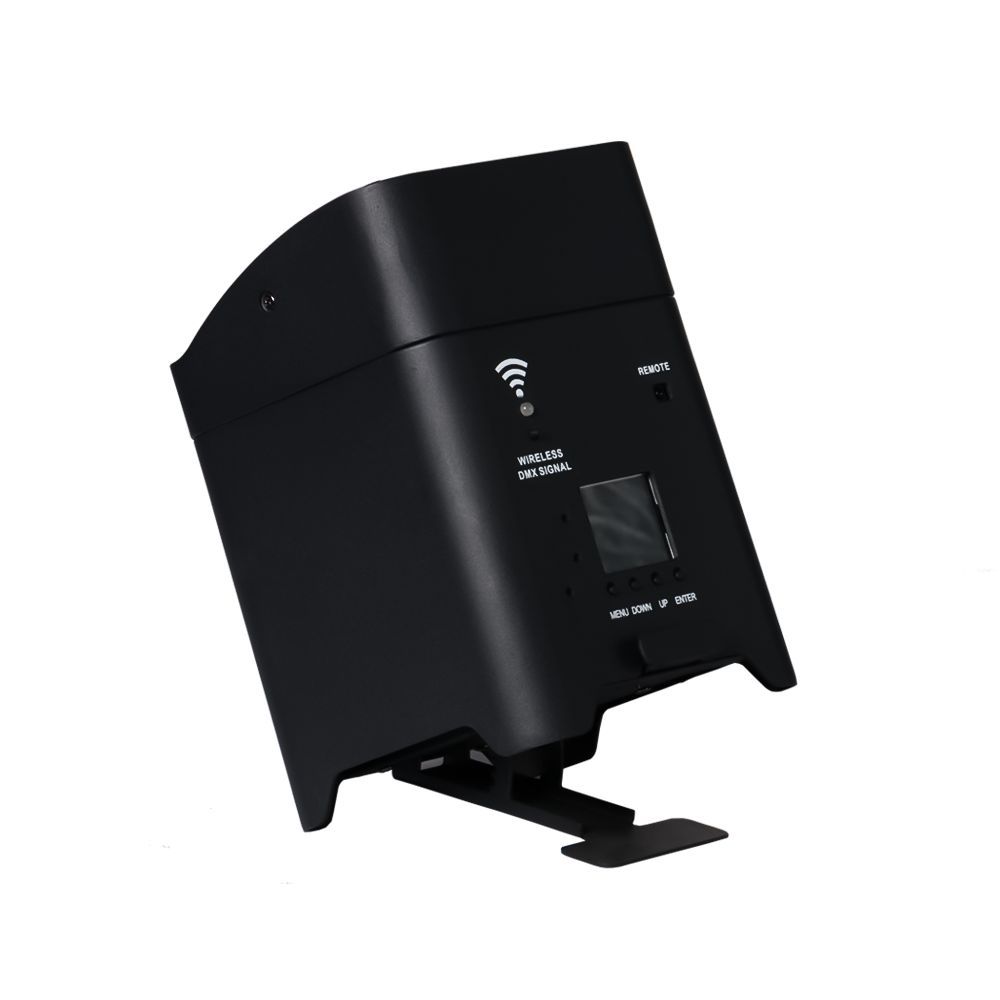

√ With Built-in 2.4G Wireless DMX + WIFI App Control + IRC Remote Control
√ Rechargeable Battery Powered:(8800MHA)
√ Suitable for discotheques, clubs, bars, parties, mobile DJs, concerts and so on.
| Battery lasting time | |
| Auto running mode | 6-7 Hours |
| one colors | 25 Hours |
| Specifications | |
| Power supply | AC100V-250V/50-60Hz |
| Lithium Battery | 8800mAh |
| Light source | 4pcs 18W high brightness 6 in 1 leds |
| SmartPhone App Control | iOS/Android Mobilephone App Control |
| Lamp life | 6-10 ten thousand hrs |
| LED angle | 15 degree |
| Control channels | 6/10 chs |
| Power consumption | 80W |
| Color | 16.7 million kinds of color change |
| Control mode | DMX512, master/slave, auto, sound active |
| Automatic model | color change,strobe,dimmer,gradua change/jump change |

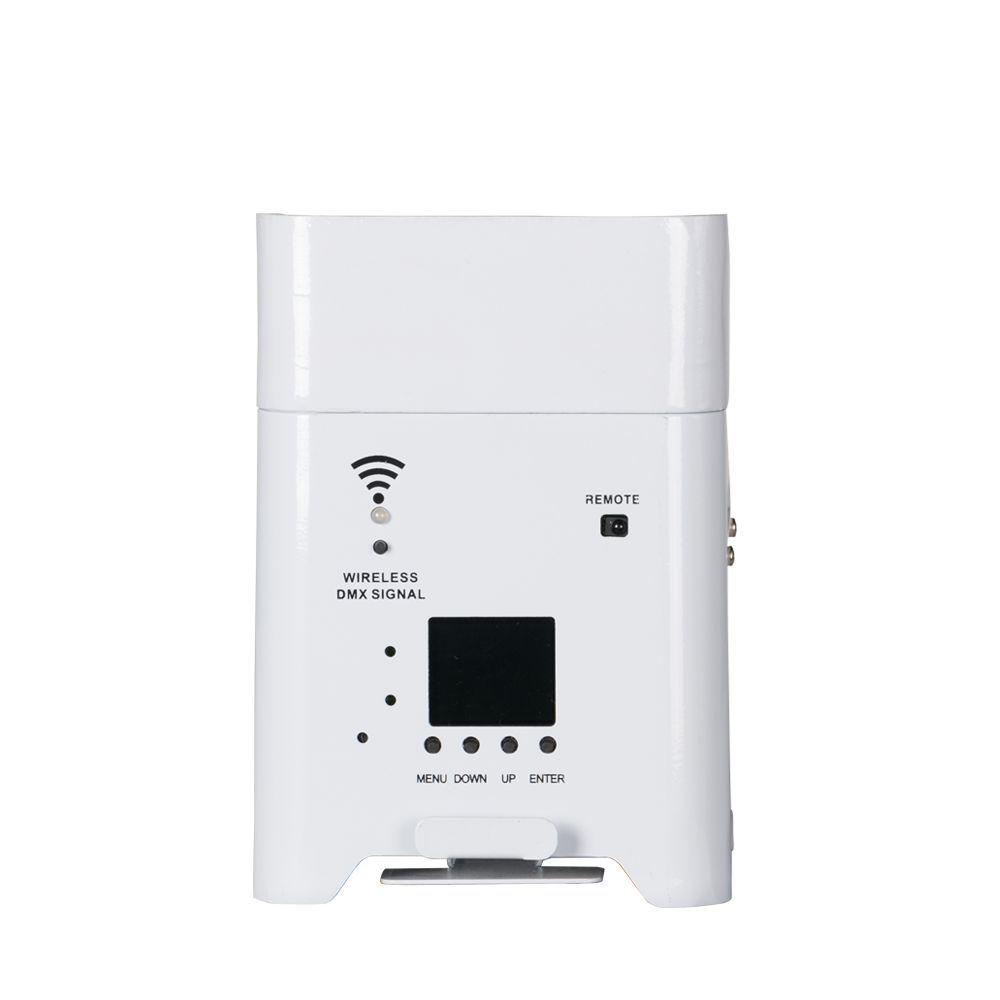

| Operation menu | LCD display |
| Dimension | 175*175*235mm 3.1kg |
| Function | |
| With Built-in 2.4G Wireless DMX 512 Receiver (DA-WDMX-PCB) | |
| Lux: 6,500 @ 1m | |
| 0Switching Power Supply | |
| High-speed Electronic Strobe: 0-20/S | |
| Electronic Linear Dimmer: 0-100% | |

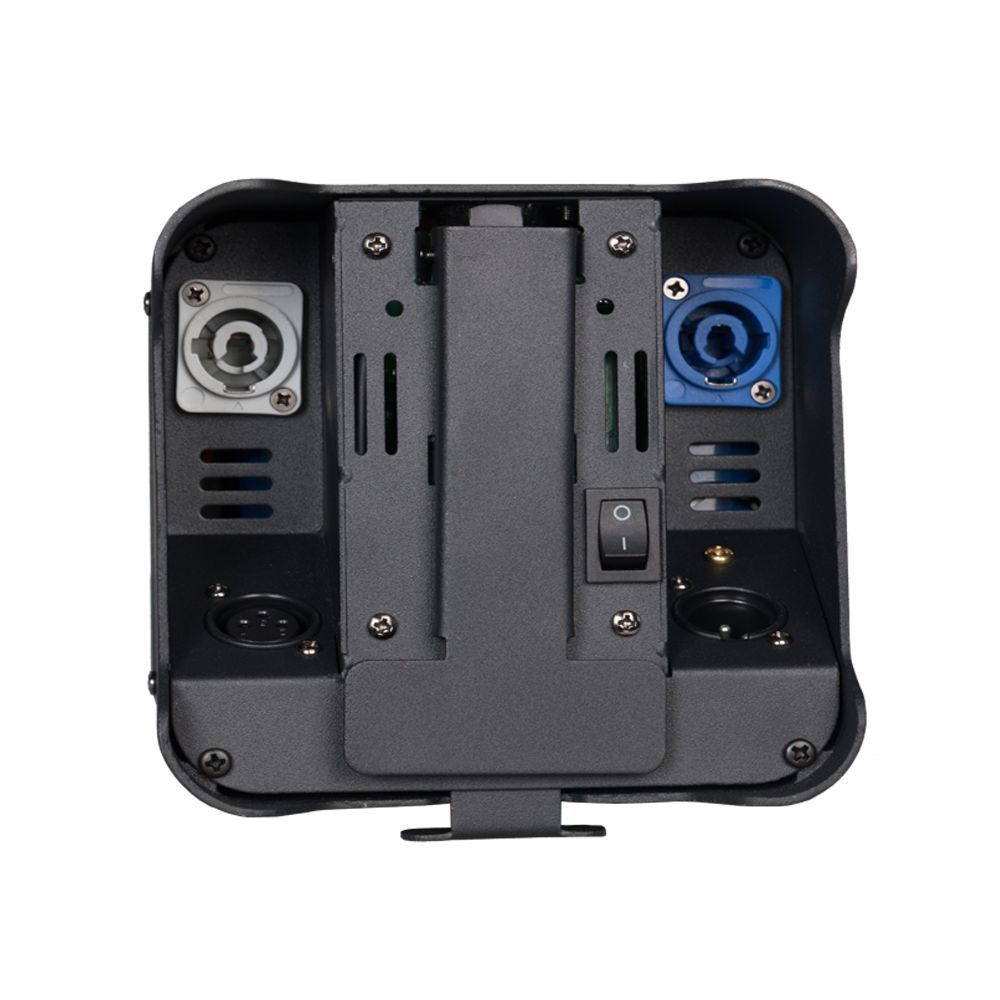

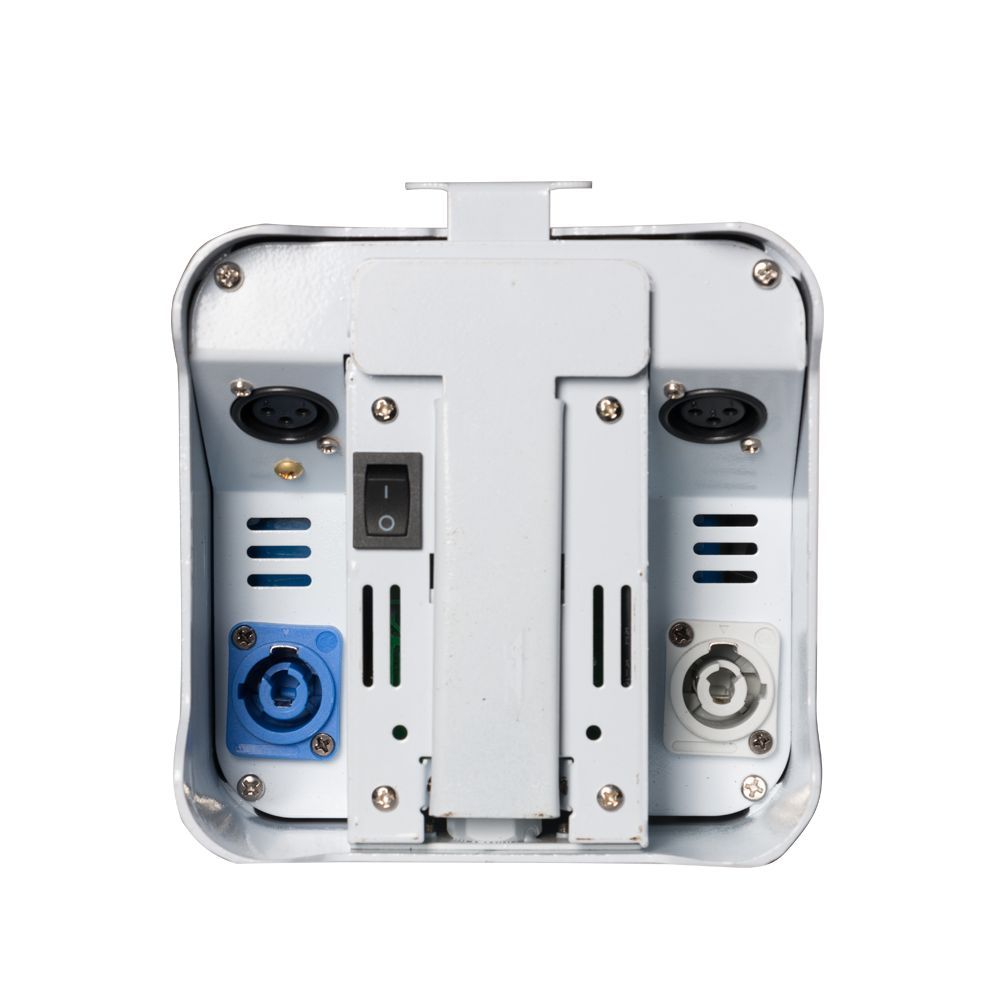

| 3-Pin DMX in and DMX out | |
| Daisy Chain Power in and Power out | |
1. Inquiry replied in 24 hours
2. Fast Shipping by DHL/UPS/FEDEX
3. OEM or ODM is welcomed
4. 1 year warranty after sale service
DMX 512 Channel List
6CH Mode:
| Channel | Address | Function |
| 1 | 0~255 | Red dimming |
| 2 | 0~255 | Green dimming |
| 3 | 0~255 | Blue dimming |
| 4 | 0~255 | White dimming |
| 5 | 0~255 | Amber dimming |
| 6 | 0~255 | UV dimming |
10CH Mode:
| Channel | Address | Function |
| 1 | 0~255 | Dimming,channel 9(0~9) |
| 2 | 0~9 | Strobe off |
| 10~255 | strobe：10 slow，255 fast | |
| 3 | 0~255 | Red, the maximum value determined by the total dimming |
| 4 | 0~255 | Green, the maximum value determined by the total dimming |
| 5 | 0~255 | Blue, the maximum value determined by the total dimming |
| 6 | 0~255 | White, the maximum value determined by the total dimming |
| 7 | 0~255 | Amber, the maximum value determined by the total dimming |
| 8 | 0~255 | UV, the maximum value determined by the total dimming |
| 170~209 | Voice - activated jump | |
| 210~239 | Sound pulse + strobe | |
| 240~255 | Sound strobe | |
| 10 | 0~255 | The function of this channel depends on the value of channel 9: When channel 9 is between 10 and 49, this channel is used to select the color When the 9th channel in 101 ~ 250 (jump, gradient, mutation), then the channel control speed: 0 the slowest, 255 fastest |
